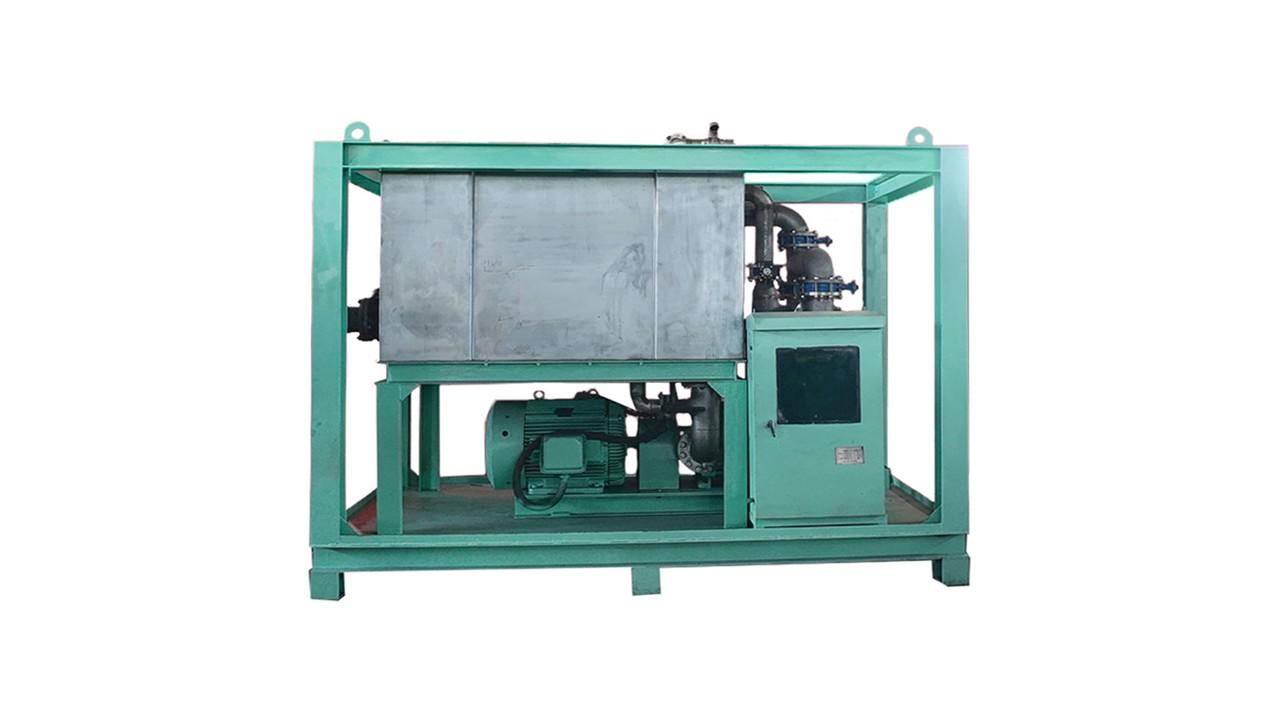

FNC-CC-002: 3,000 L/min

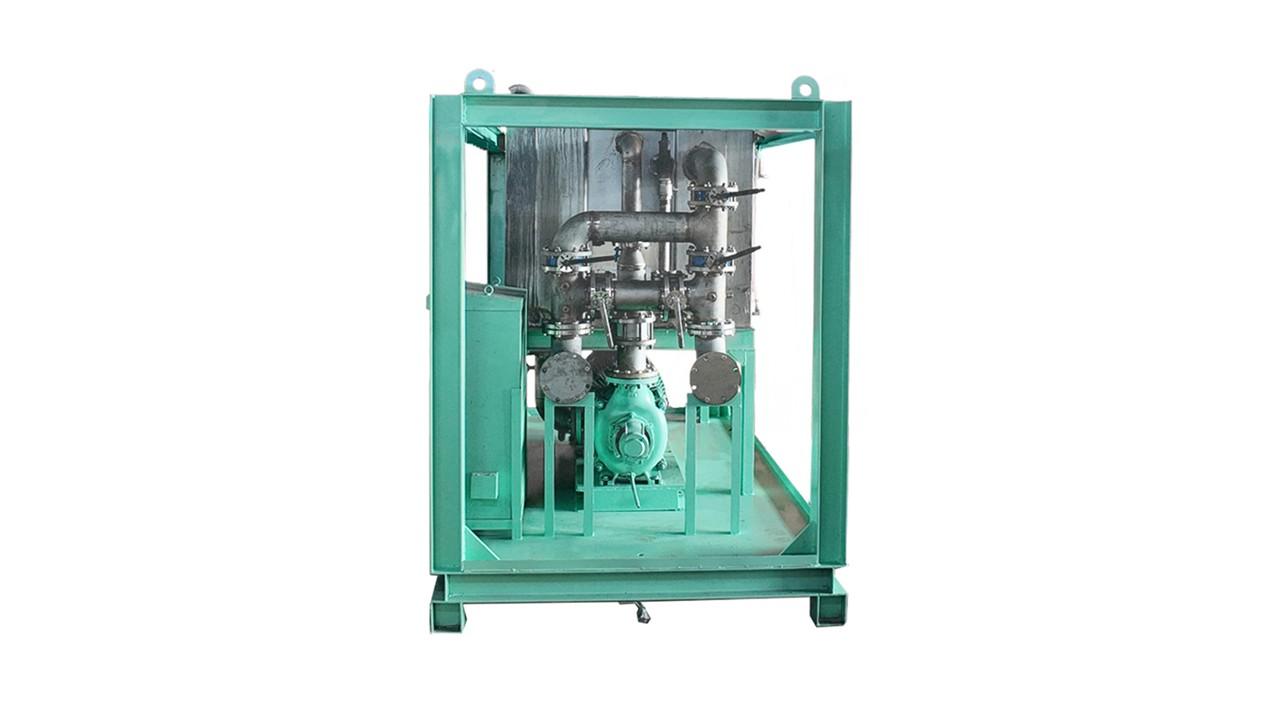

CC-002 – Chemical Cleaning Pump Unit
Specification of Pump
1. CHEMICAL PUMP
- TYPE: MULTI STAGE VOLUTE (DAEYOUNG / KR)
- VOLUME: 3,000 L/min
- PRESSURE: 7bar (70m)
2. MOTOR
- POWER: 95kW (125HP) (HYOSUNG / KR)
- POLE&FREQUENCY: 4P / 60Hz
3. RESERVOIR TANK
- VOLUME: 3,500L
4. HEATER
- Power Consumption: 40kW x 3EA
5. VALVE
- RELIEF VALVE: 30bar (OPEN GAUGE)
6. BASKET FILTER UNIT
- HOUSING: N/A
- BAG FILTER: N/A
7. FINE FILTER UNIT
- HOUSING: N/A
- ELEMENT FILTER: N/A
8. CONTROL PANEL
- INPUT: 440V x 3PH
- TYPE: WATERPROOF
- CONTROL: 220V
9. SIZE
- Size: L x W x H(mm): 3,500 x 2,050 x 2,700
10. WEIGHT(kg)
- 4,000kg
11. CONNECTOR
- SUPPLY: ASME 150# 6"
- RETURN: ASME 150# 6"
#Chemical Cleaning / Pickling / Acid / Pump for service
#Chemical Cleaning / Pickling / Acid / Pump for rental
#Chemical / Pickling / Acid / circulation system
[ Used in Maga Project ]
SBM MERO2 FPSO
Yinson AGOGO FPSO
MISC MERO3 FPSO
China One Facility Chemical Cleaning (P1-P2-P3)
SBM BUZIO-6 FPSO
