FNC-W-011:1,000 bar/15,000 PSI
Hydro Test Pump/ Hydraulic pressure Pump

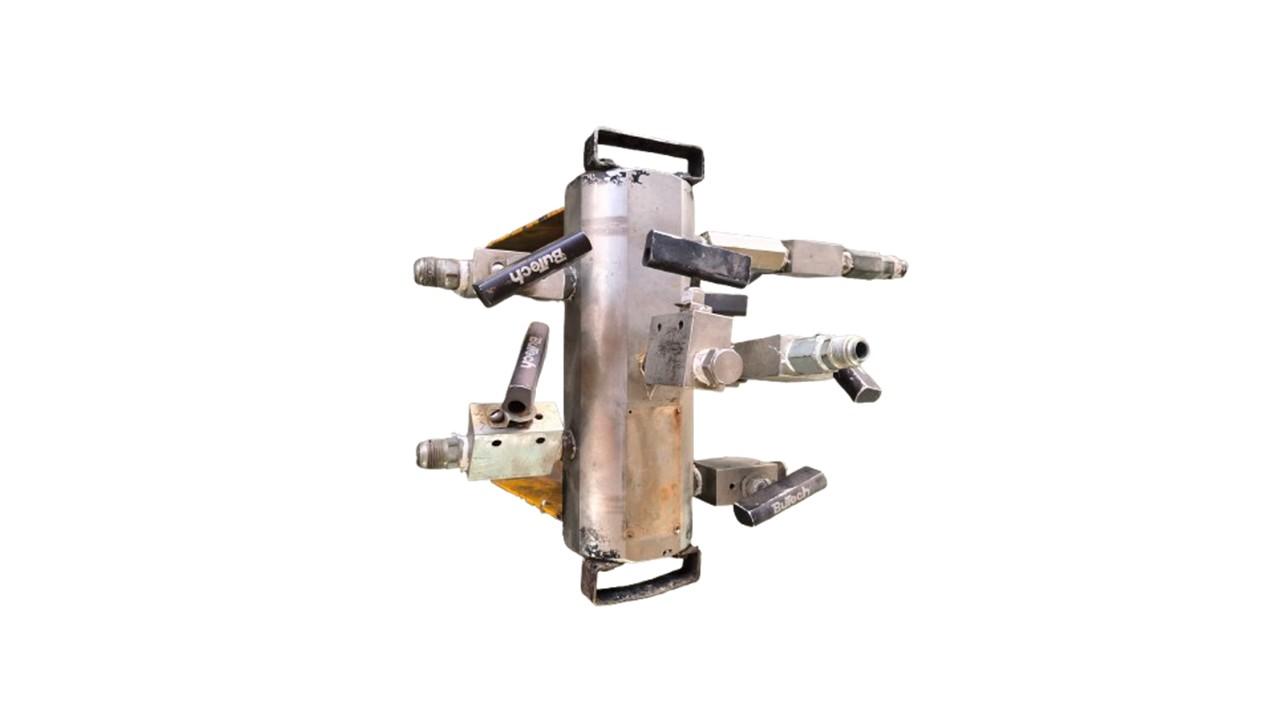

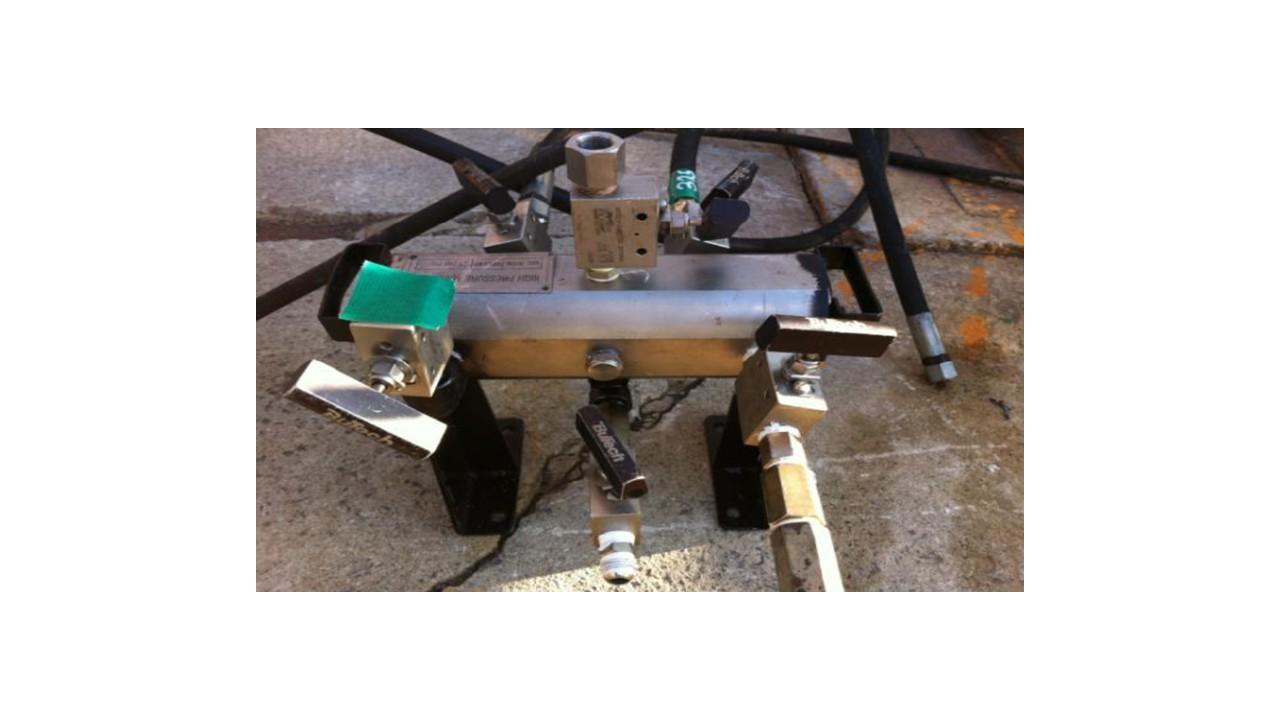

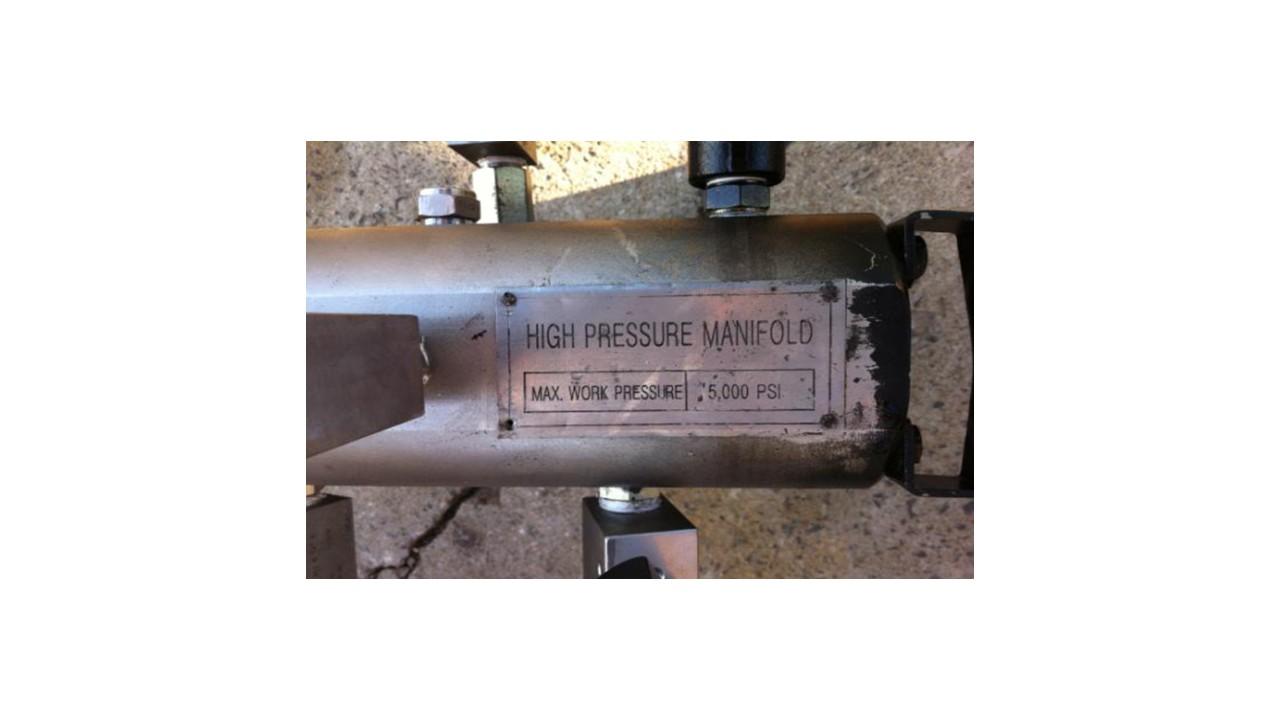

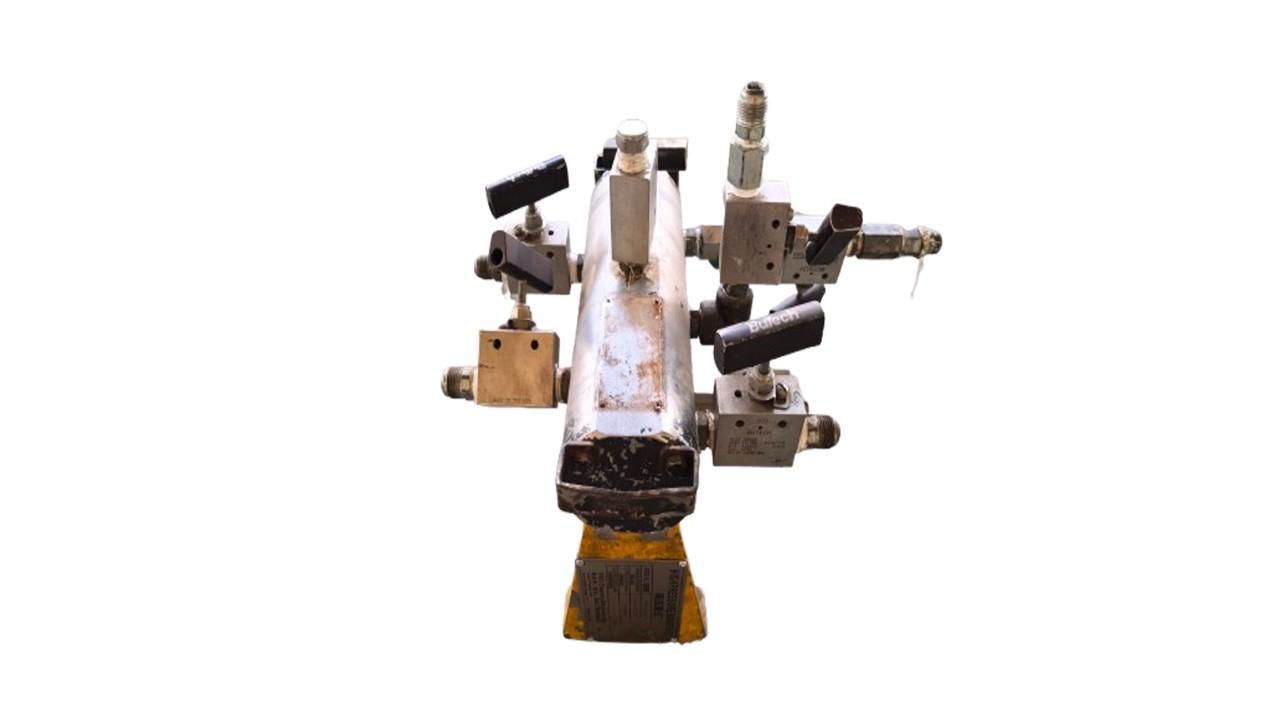

FNC-W-011 – High Pressure Manifold
Specification of Manifold
1. MANIFOLD
- TYPE: HIGH PRESSURE MANIFOLD (ASSEMBLY)
- PRESSURE: 1,000bar (15,000 PSI)
2. CONTROL VALVE
- TYPE: NEEDLE (BUTECH / KOREA)
- SERIAL NO.: SLPV21R
- SIZE: 1/8" x 5EA
- MATERIAL: SUS-304
3. RELIEF VALVE
- SERIAL NO.: RVG-100 (HASKEL / USA)
- ADJUST RANGE: 70~700bar / 201~2,100bar
4. SIZE
- Size: L x W x H(mm): 600 x 400 x 600
5. WEIGHT(kg)
- 53kg
#High Pressure Manifold for hydro testing
#Compact multi-valve manifold
[ Used in Maga Project ]
SBM MERO2 FPSO
Yinson AGOGO FPSO
MISC MERO3 FPSO
China One Oil Flushing
SBM BUZIO-6 FPSO
