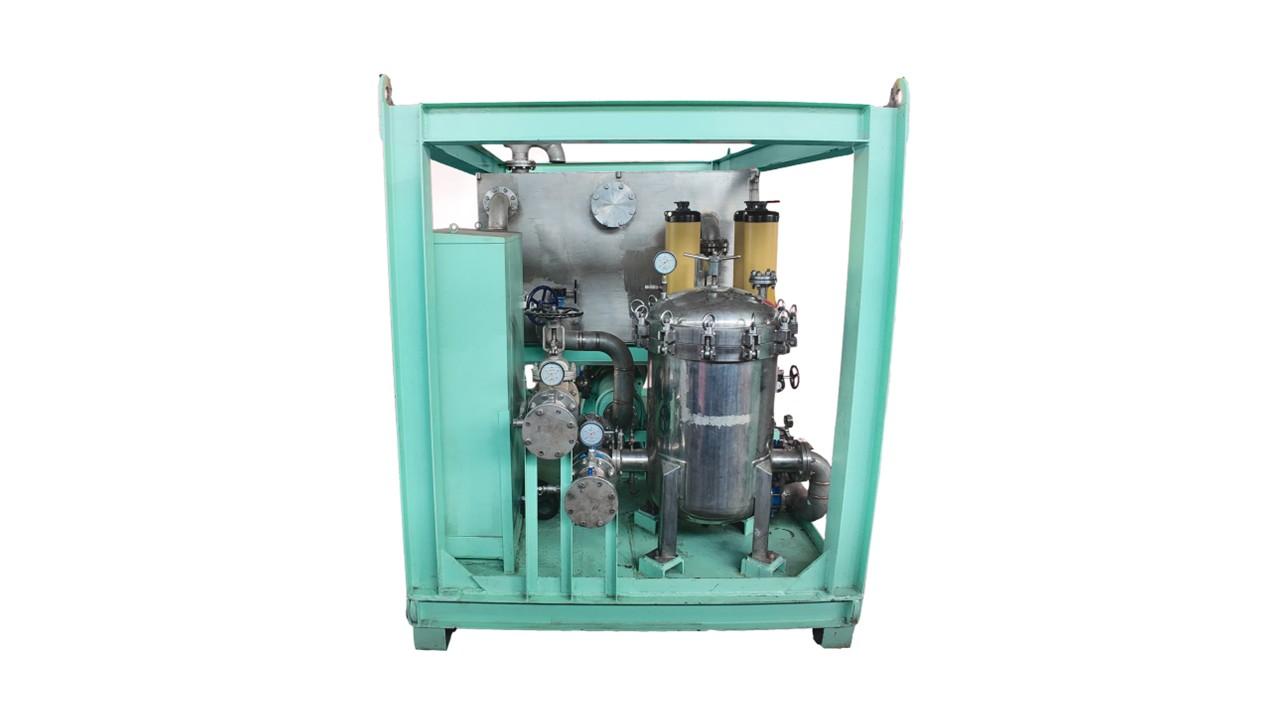

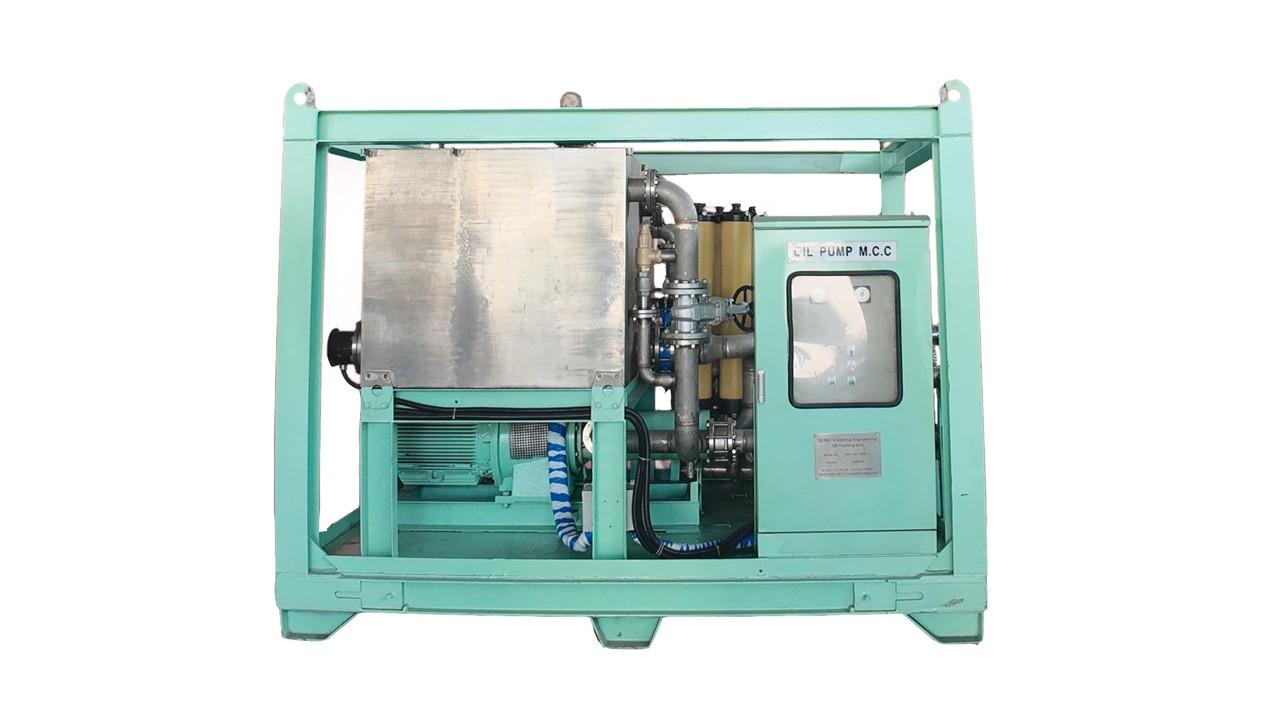

FNC-OF-003: 2700 L/min
Specification of Pump
1. OIL PUMP
- TYPE: SCREW
- VOLUME: 2,700L/min
- PRESSURE: 16bar
2. MOTOR
- POWER 188kW (250HP)
- POLE&FREQUENCY: 4P60Hz
3. RESERVOIR TANK
- VOLUME: 2,400L
4.HEATER
-Power Consumption: 45kW x 3EA
5. VALVE
- RELIEF VALVE: 33bar
6. BASKET FILTER UNIT
- HOUSING: BAG FILTER
- BAG FILTER: 1㎛
7. FINE FILTER UNIT
- HOUSING: PALL x 4EA
- ELEMENT FILTER: 3㎛
8. CONTROL PANEL
- INPUT: 440V x 3PH
- TYPE: WATERPROOF
- CONTROL: 220V
9. SIZE
Size L x W x H(mm): 3,250 x 2,050 x 2,550
10. WEIGHT (kg)
- 5,500kg
11. CONNECTOR
- SUPPLY: ASME 150# 4"
- RETURN: ASME 150# 4"
#Oil Flushing Pump for service
#Oil Flushing Pump for rental
#High velocity lube oil flushing
[ Used in Maga Project ]
SBM MERO2 FPSO
Yinson AGOGO FPSO
MISC MERO3 FPSO
China One Oil Flushing
SBM BUZIO-6 FPSO
