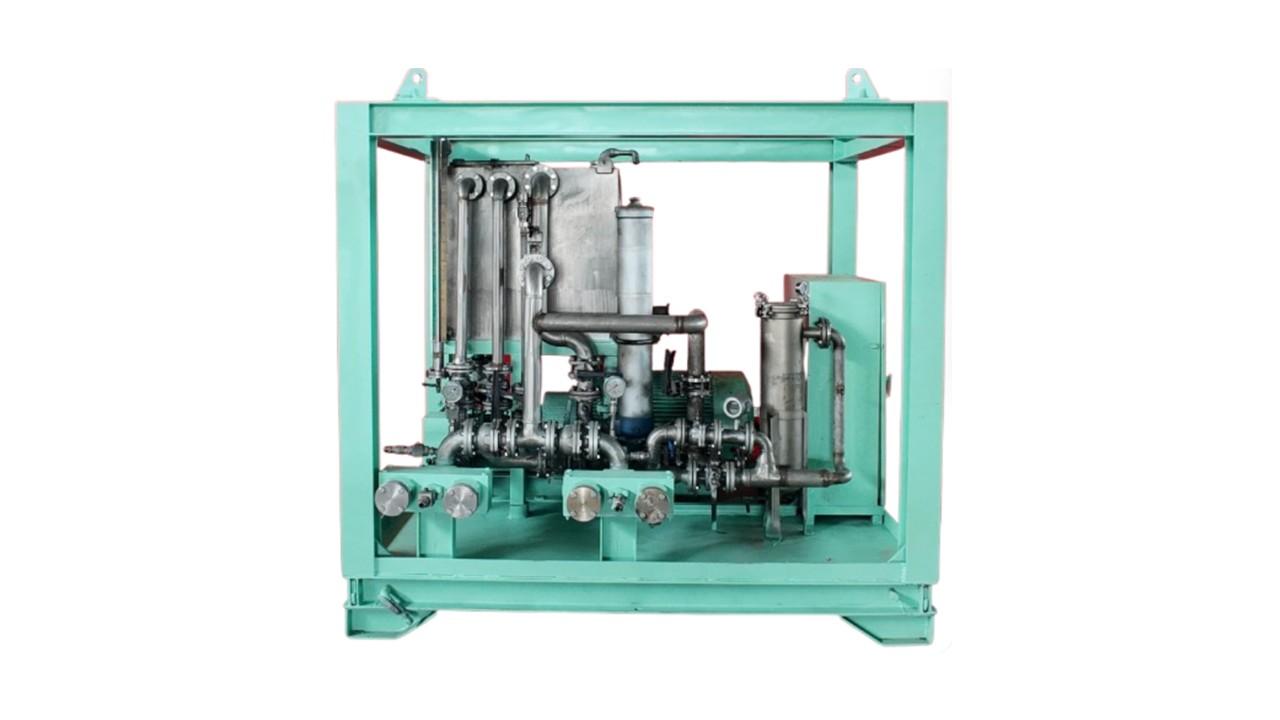

FNC-OF-007: 466 L/min
Specification of Pump
1. OIL PUMP
- TYPE: VANE GEAR
- VOLUME: 466L/min
- PRESSURE: 16bar
2. MOTOR
- POWER: 110kW (150HP)
- POLE&FREQUENCY: 4P60Hz
3. RESERVOIR TANK
- VOLUME: 1,100L
4. HEATER
- Power Consumption: 40kW / 30kW
5. VALVE
- RELIEF VALVE: 33bar
6. BASKET FILTER UNIT
- HOUSING: BAG FILTER
- BAG FILTER: 1㎛
7. FINE FILTER UNIT
- HOUSING: PALL x 1EA
- ELEMENT FILTER: 3㎛
8. CONTROL PANEL
- INPUT: 440V x 3PH
- TYPE: WATERPROOF
- CONTROL: 220V
9. SIZE
- Size: L x W x H(mm): 2,700 x 2,200 x 2,750
10. WEIGHT(kg)
- 4,000kg
11. CONNECTOR
- SUPPLY: DN50 x 2EA / DN25 x 1EA
- RETURN: DN50 x 2EA / DN25 x 1EA
#Oil Flushing Pump for service
#Oil Flushing Pump for rental
#High velocity lube oil flushing
[ Used in Maga Project ]
SBM MERO2 FPSO
Yinson AGOGO FPSO
MISC MERO3 FPSO
China One Oil Flushing
SBM BUZIO-6 FPSO
