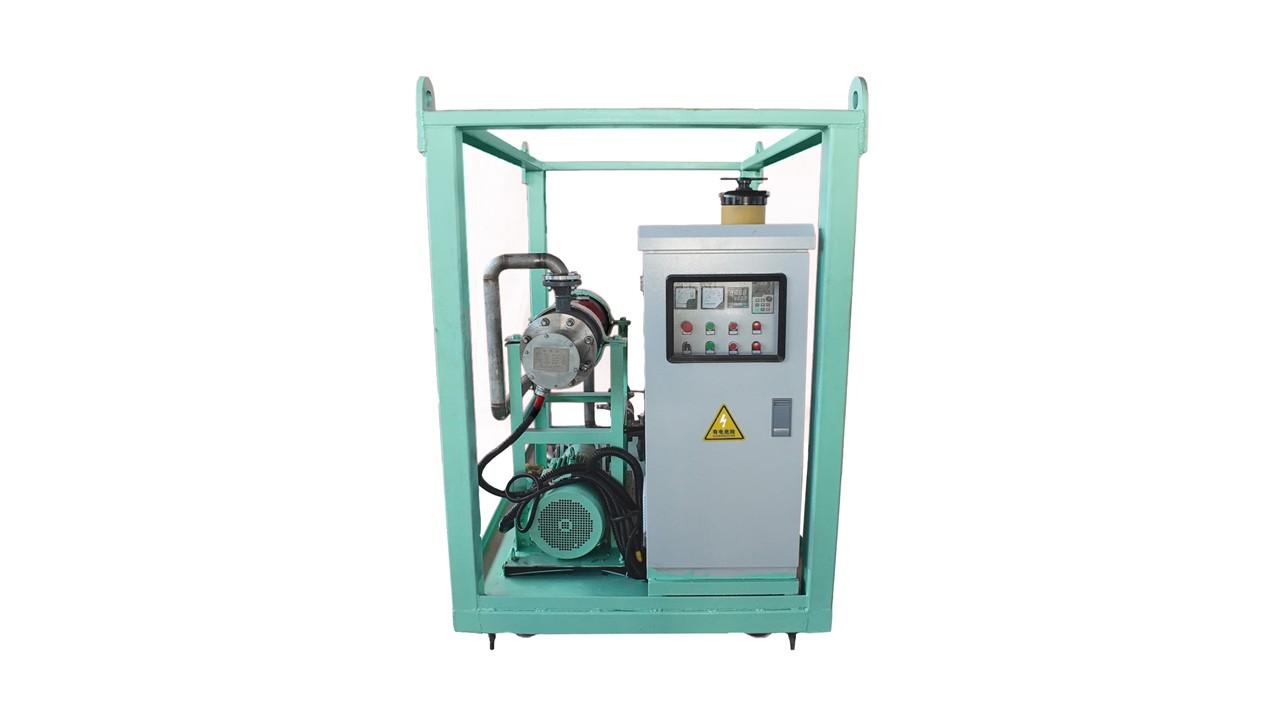

FNC-SY-002: 500 L/min

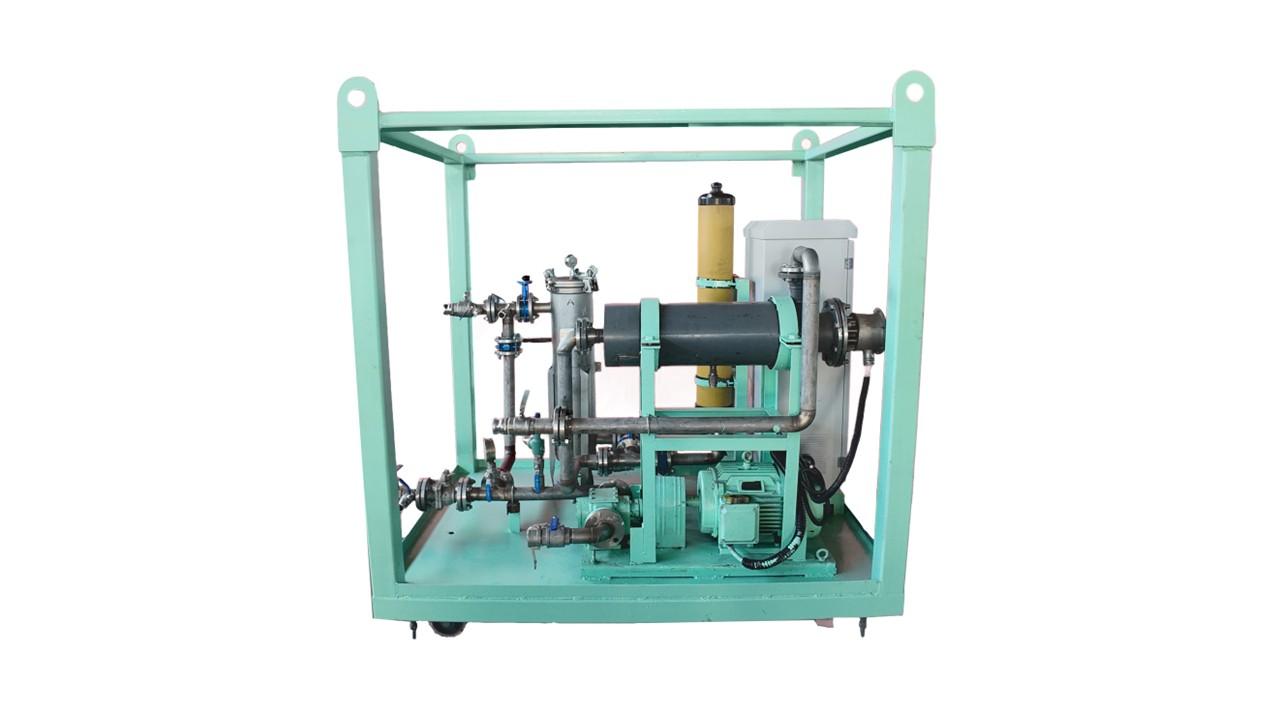

SY-002 – Synthetic Oil Flushing Pump Unit
Specification of Pump
1. OIL PUMP
- TYPE: SCREW
- VOLUME: 500L/min
- PRESSURE: 7bar
2. MOTOR
- POWER: 18.5kW
- POLE&FREQUENCY: 4P / 50Hz
3. RESERVOIR TANK
- VOLUME: N/A
4. HEATER
- Power Consumption: 30kW x 1EA
5. VALVE
- RELIEF VALVE: 10bar
6. BASKET FILTER UNIT
- HOUSING: BAG FILTER
- BAG FILTER: 1㎛
7. FINE FILTER UNIT
- HOUSING: PALL x 1EA
- ELEMENT FILTER: 3㎛
8. CONTROL PANEL
- INPUT: 380V x 3PH
- TYPE: WATERPROOF
- CONTROL: 220V
9. SIZE
- Size: L x W x H(mm): 2,000 x 1,400 x 2,150
10. WEIGHT(kg)
- 1,000kg
11. CONNECTOR
- SUPPLY: ASME 150# 2"
- RETURN: ASME 150# 2"
#Oil Flushing Pump for service
#Oil Flushing Pump for rental
#High velocity oil flushing pump Skid
[ Used in Maga Project ]
SBM MERO2 FPSO
Yinson AGOGO FPSO
MISC MERO3 FPSO
China One Oil Flushing
SBM BUZIO-6 FPSO
